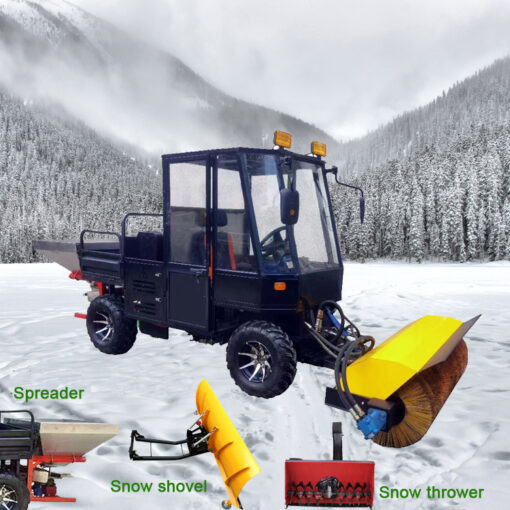

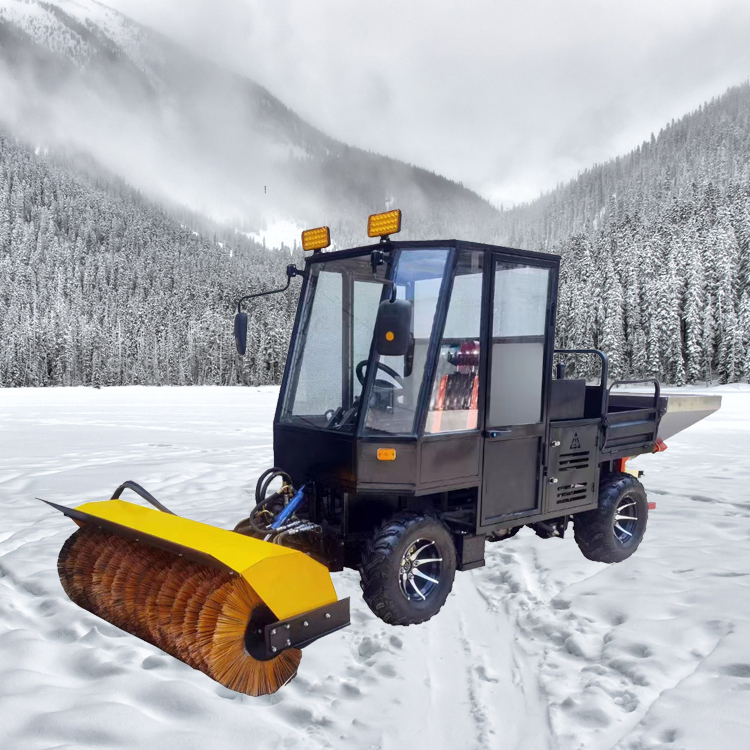

Multi-function snow plough

Products description:

Multi-function snow plough

Model no.: SJ-D1818-1

Engine technical specification:
Vehicle engine brand: Gasoline KB178, single cylinder, water cooled, 4 stroke
Power: 312cc / 13Kw
Start model: Electrical start
Fuel capacity: 20L
Hydraulic oil capacity: 20L
Fuel consumption: <=340g/KW.H
Hydraulic engine: Gasoline G460FD, single cylinder, water cooled, 4 stroke
Ground clearance: 20cm (min)
Forward/Re speeds: 2 / 1 reverse
Speed: 0-22KM/H
Radius of turning circle: <3m
Snow clearing technical specification:
Drive mode: 4WD, differential shaft drive
Rolling brush motor: Hydraulic motor 160ml/r
Working width: 150cm / 59″
Brush diameter: 50cm /19.7″
Brush rotate speed: >280rpm
Left and right angle control: Hydraumatic
Brush off ground control: Hydraumatic
Working head adjustable angle: Left 20 degrees, right 20 degrees
Wheels: 12″ Aluminum wheel
Easy fast assembly: Yes
Packing: Iron rack + wooden box
Cer.for Europe: CE Standard
PCS/Carton: 1PC/Carton
G./N. Weight: 1000/950kg
Carton size: 350X165X195cm
Warranty: One year
Loading 20’/40’/40HQ: 2/5/6pcs
